Multiple Inputs

Each screen is equipped with 2×12G-SDI inputs, 1×12G-SDI output, and 1× HDMI input, supporting up to three 4K signals simultaneously, allowing customers to quickly switch between SDI-1/SDI-2/HDMI signals with ease, making it highly flexible to various scenarios.

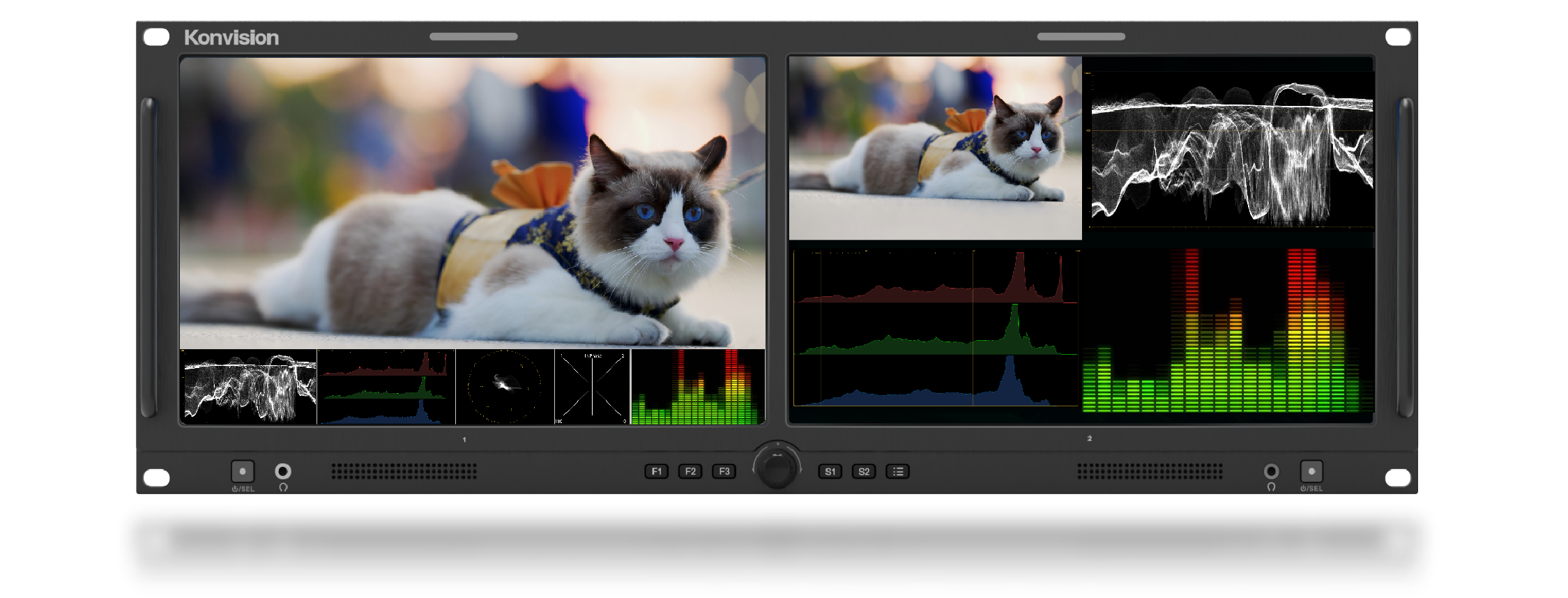

Multiple Waveform View

Multiple waveform View is available on the same screen, allowing customers to easily check the image's color, brightness, and audio information for better adjustments.

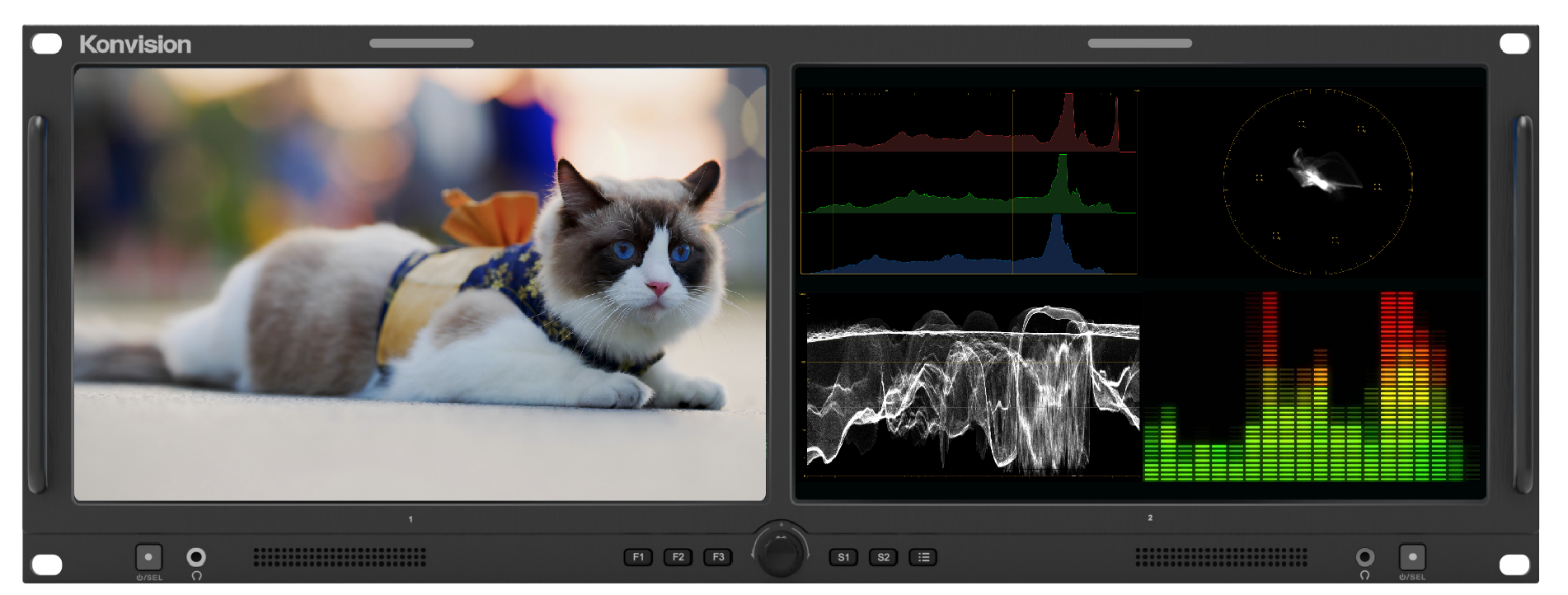

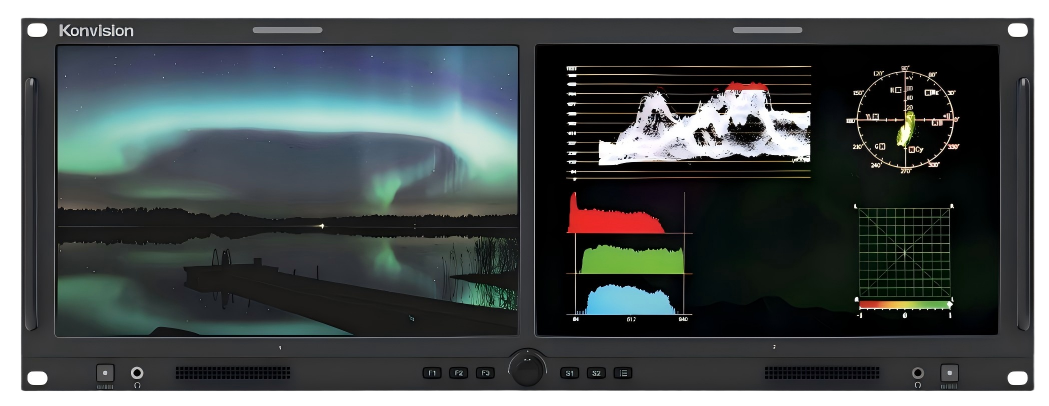

Single-Screen Waveform

Single-screen display mode for precise image quality analysis. It allows one screen to monitor the real-time image while the other simultaneously displays waveform. Two screens work independently, avoiding overlap and interference, providing larger and clearer waveform. It supports internal signal linkage, no need for additional wiring.

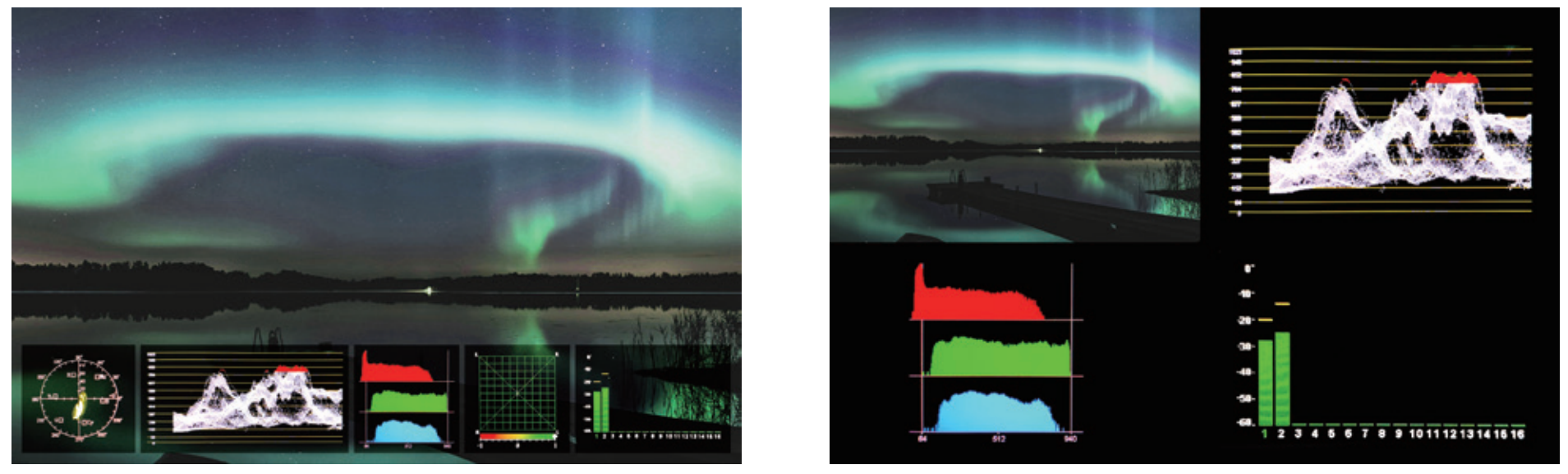

 <Five waveform types supported: Waveform, Vector Scope, Histogram, Audio Phase, and Audio Meter.>

Factory-Calibrated for Consistent Color

Every Konvision monitor undergoes rigorous color calibration before shipping. With proprietary 3D LUT color calibration technology based on tetrahedral interpolation algorithms, paired with industry-leading calibration software (Calman/ColourSpace) and professional-grade probes (e.g., colorimeter K10-A, luminance meter CR300), we ensure precise and consistent color accuracy across all units and screens.

High Dynamic Range

Konvision's HDR simulation technology restores and simulates HDR signals, accurately presenting rich details in both highlights and shadows. While displaying HDR content, it supports calculating and displaying the percentage of areas with luminance above 203 nits.

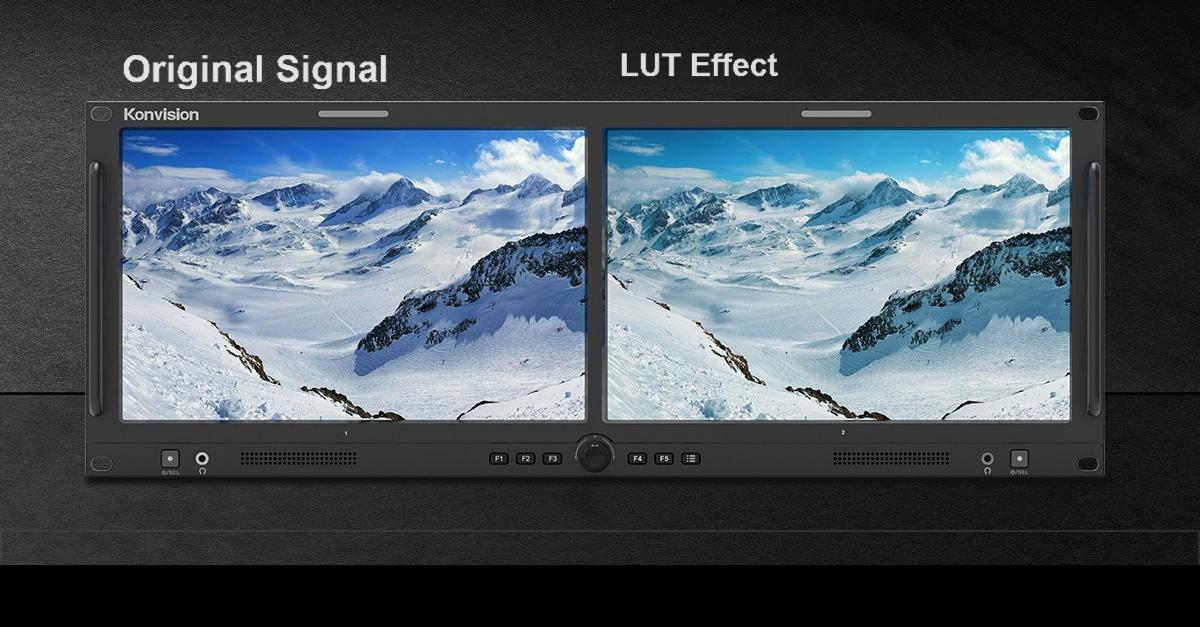

Custom LUT Import

Easily import and store 3D LUTs via USB. Once loaded, different LUT effects can be applied across multiple screens for side-by-side comparisons, no need for screen switching.

Multiple Gamma and EOTF Curve Conversion

Supports Gamma 2.0, 2.2, 2.4, and 2.6, along with a variety of EOTF curves that comply with broadcast and digital cinema standards.

Remote Control

Compatible with TSL 3.1/4.0/5.0 protocols and supports GPI-based remote control for a wide range of functions, including signal input selection, blue-only mode, marker, Tally control, and aspect ratio.

Three-Color TALLY Light

The TALLY light uses red, green, and yellow indicators for clear and intuitive signal status display. Control or customize the TALLY light through the RS422 interface using TSL or GPI protocols.

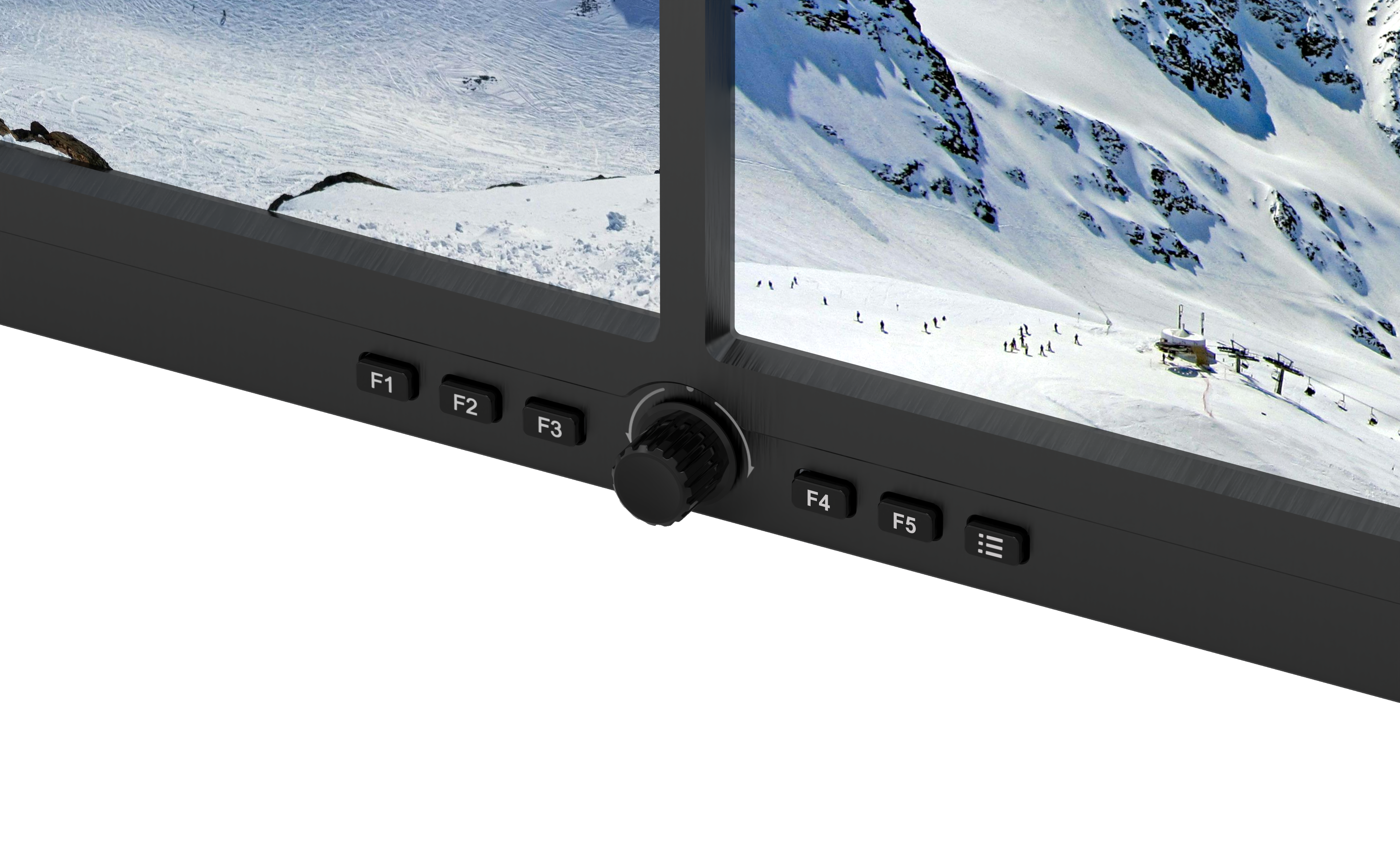

User-Friendly Operation

Features ergonomic button layouts and shortcut keys for seamless operation. The multifunctional knob allows precise adjustment of brightness, contrast, volume, and system menu settings.

Advanced Image Analysis functions

Equipped with professional tools such as HDR percentage analysis, waveform, false color, focus assist, and zebra, the system delivers accurate and comprehensive image information for real-time adjustments.

Comprehensive Marker Tools

Provides a range of Marker aids, including aspect ratio, marker, and safety marker. The BOX Control function can flexibly set the height and width of the marker frame on the monitor, and can be adjusted up, down, left and right. Users can flexibly adjust according to the frame ratio, which brings great convenience to program production.
