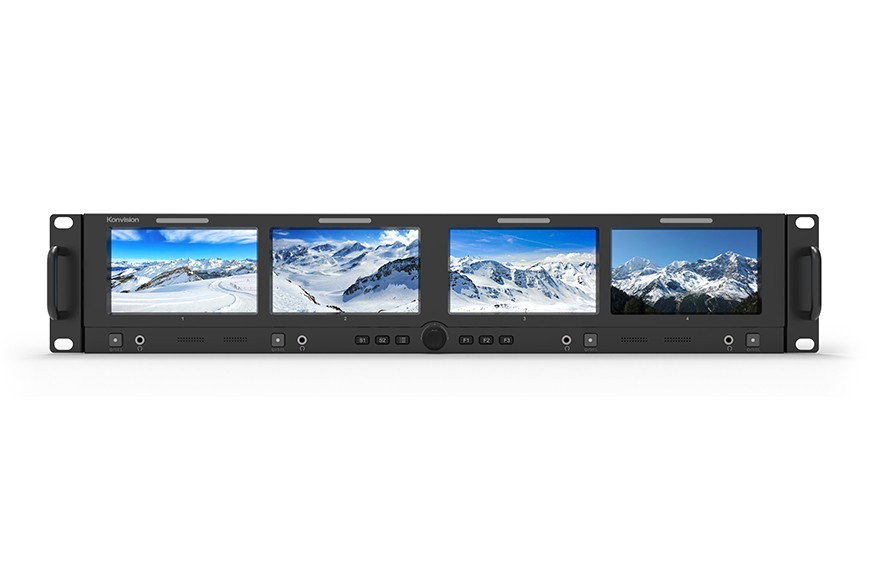

The KRM-404U is equipped with 4×4.1inch 1280x720 FHD IPS LCD panels, offering a 1000:1 contrast ratio and supports HDR. With a wide 170° horizontal/vertical viewing angle, it provides multiple video interface options, including 12G/6G/3G/HD/SD-SDI and HDMI 2.0. It supports SDI audio de-embedding and features built-in speakers. Professional image analysis functions such as waveform, vector, and other functions are available. It also supports full-screen waveform display: One screen displays the image, and the other displays the waveform in full-screen mode, which offers an ideal solution for various applications such as control rooms, OB vans, and EFP systems.
Highlights
- 4 x 4.1"，1280×720 FHD resolution
- Each screen: 2 x 12G/6G/3G/HD/SD-SDI inputs with 1x output
- Each screen: 1x HDMI 2.0 input, supporting Ethernet/GPI remote control
- Full-screen waveform display: One screen displays the image, and the other displays the waveform in full-screen mode
- Waveform, vector, histogram, false color, focus assist, and other professional image analysis functions
- HDR: HLG (1.03/1.11/1.16/1.20/1.27/1.33), PQ (softroll)
- Color spaces supported: Rec.709, EBU, DCI-P3, DCI-P3 D65, Rec.2020

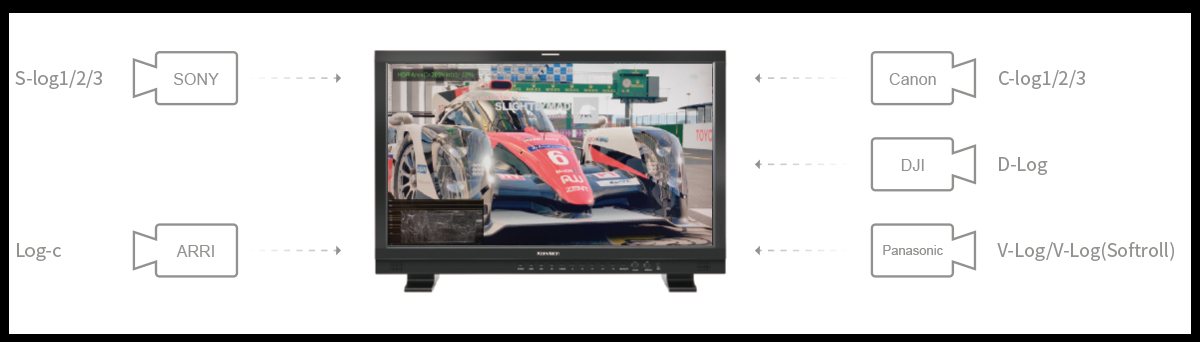

- Various camera log curves, custom 3D LUT supported
- HDR percentage analysis: provide the proportion of the image with brightness > 203 Nits
- 16-channel SDI signal embedded audio display with any 2 channels output
- Analog stereo input, built-in speaker, 3.5mm headphone output
- Function keys for quick access to auxiliary functions
- TC timecode, static and dynamic UMD display, Payload ID display supported
- Overscan, H/V delay, Blue/Mono Only
- Flexible Marker including Safety Marker, CC(Closed Captions), Markers, UMD Audio Meter
- Aluminum Alloy Casing, LED TALLY light
Product Descriptions

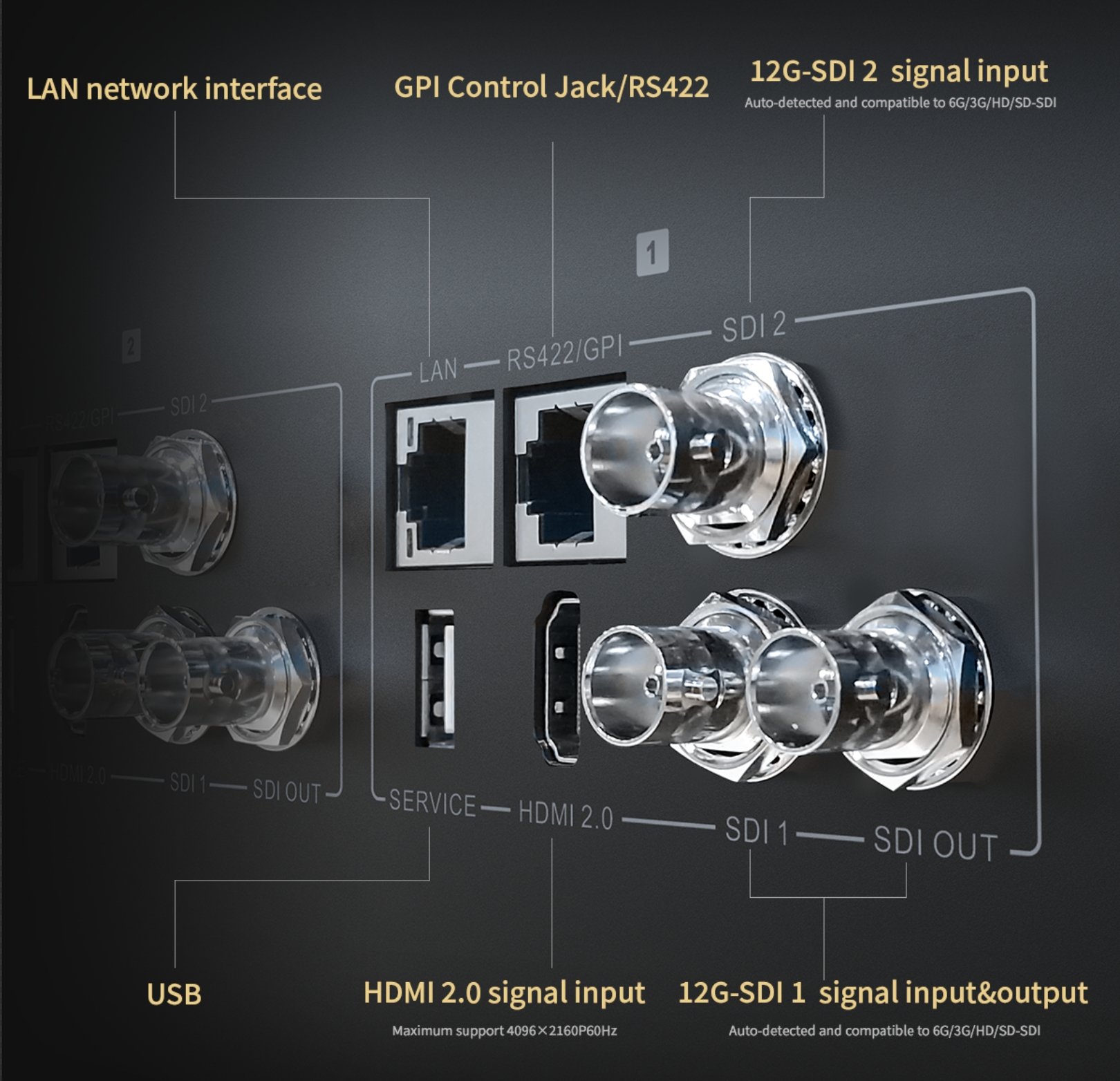

Multiple Inputs
Each screen is equipped with 2×12G-SDI inputs, 1×12G-SDI output, and 1× HDMI input, supporting up to three 4K signals simultaneously, allowing customers to quickly switch between SDI-1/SDI-2/HDMI signals with ease, making it highly flexible to various scenarios.

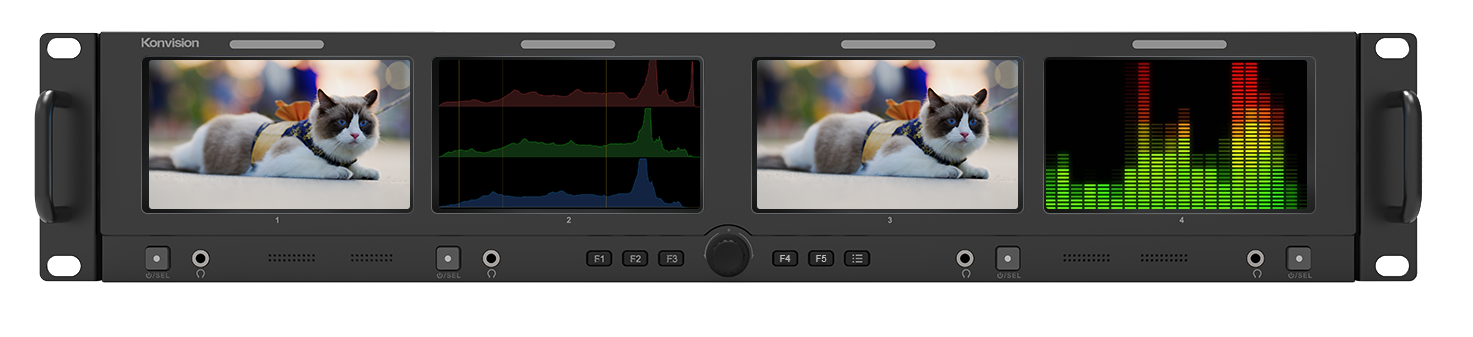

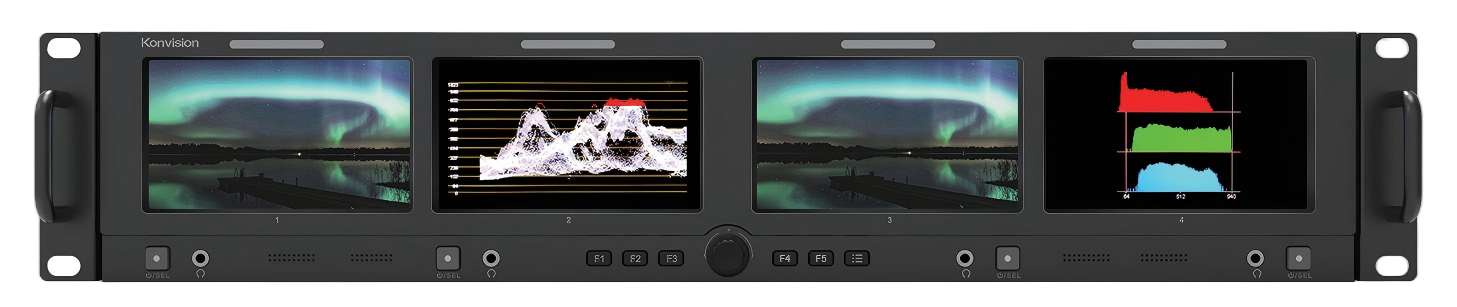

Full-Screen Waveform
One screen ensures monitoring, while another focuses on Full-Screen Waveform(as for 4 screens, 1&2 as a set, 3&4 as a set). Five waveform available: Waveform Monitor, Vector Scope, Histogram, Audio Phase, or Audio Meter.

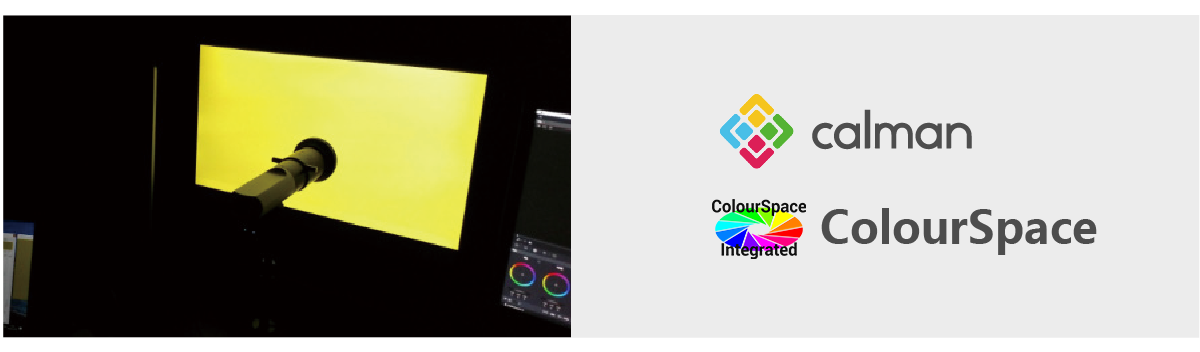

Factory-Calibrated for Consistent Color
Every Konvision monitor undergoes rigorous color calibration before shipping. With proprietary 3D LUT color calibration technology based on tetrahedral interpolation algorithms, paired with industry-leading calibration software (Calman/ColourSpace) and professional-grade probes (e.g., colorimeter K10-A, luminance meter CR300), we ensure precise and consistent color accuracy across all units and screens.

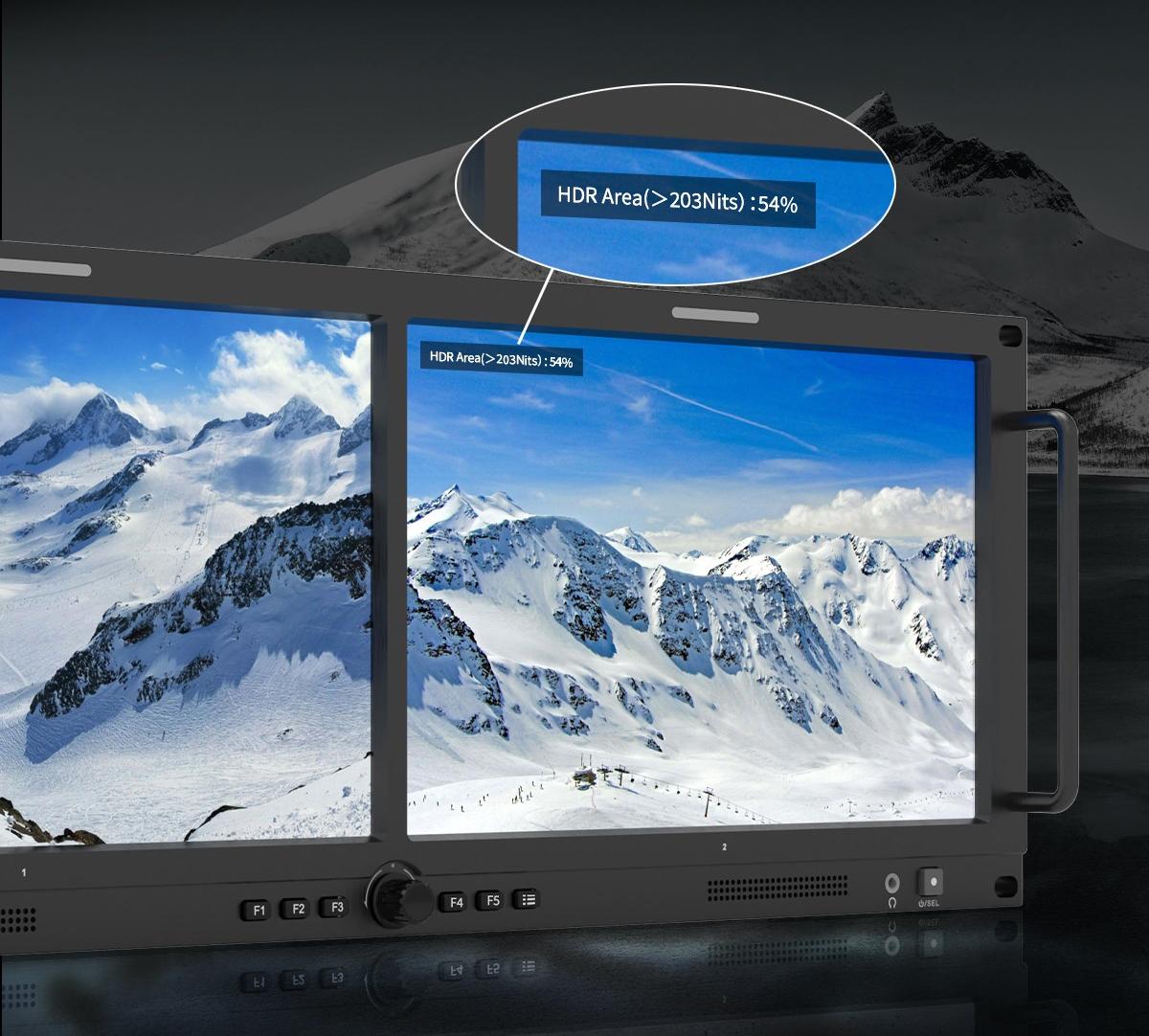

High Dynamic Range
Konvision's HDR simulation technology restores and simulates HDR signals, accurately presenting rich details in both highlights and shadows. While displaying HDR content, it supports calculating and displaying the percentage of areas with luminance above 203 nits.

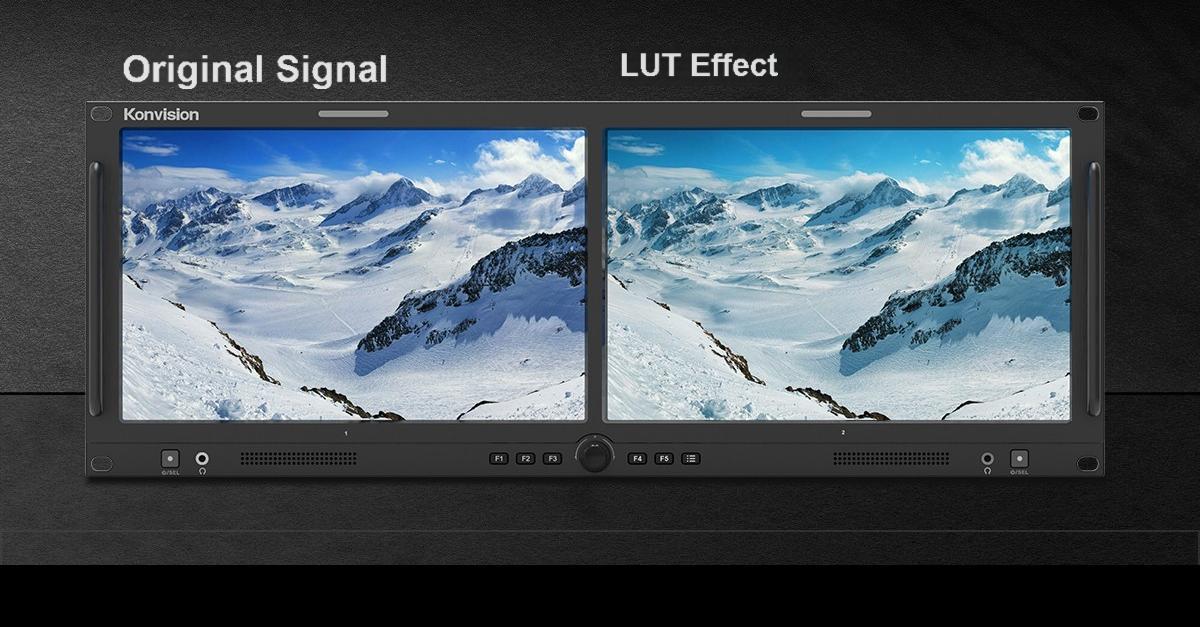

Custom LUT Import
Easily import and store 3D LUTs via USB. Once loaded, different LUT effects can be applied across multiple screens for side-by-side comparisons, no need for screen switching.
*Taking KRM-1002U as an example in the diagram
Multiple Gamma and EOTF Curve Conversion
Supports Gamma 2.0, 2.2, 2.4, and 2.6, along with a variety of EOTF curves that comply with broadcast and digital cinema standards.
Remote Control
Compatible with TSL 3.1/4.0/5.0 protocols and supports GPI-based remote control for a wide range of functions, including signal input selection, blue-only mode, marker, Tally control, and aspect ratio.

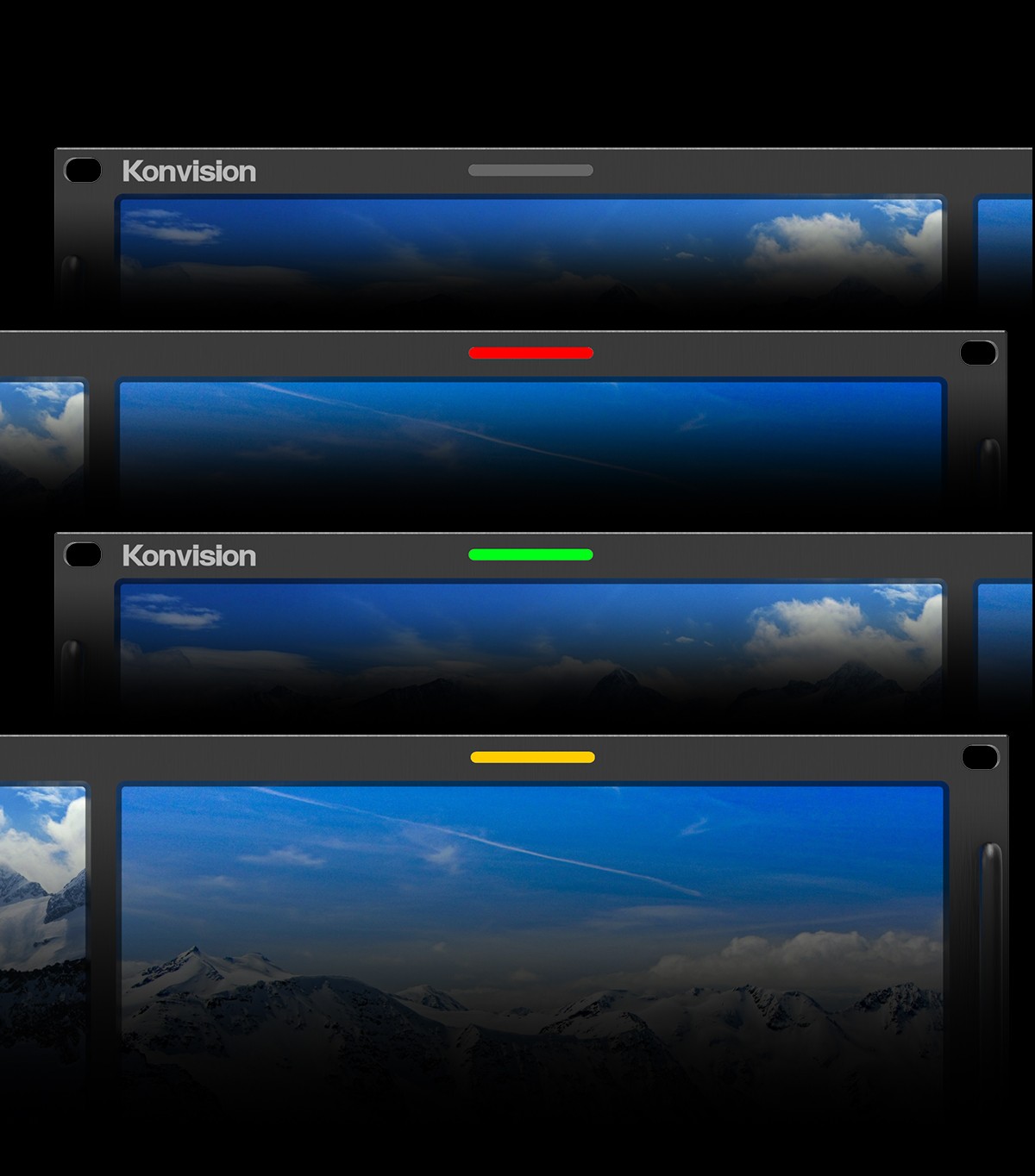

Three-Color TALLY Light
The TALLY light uses red, green, and yellow indicators for clear and intuitive signal status display. Control or customize the TALLY light through the RS422 interface using TSL or GPI protocols.

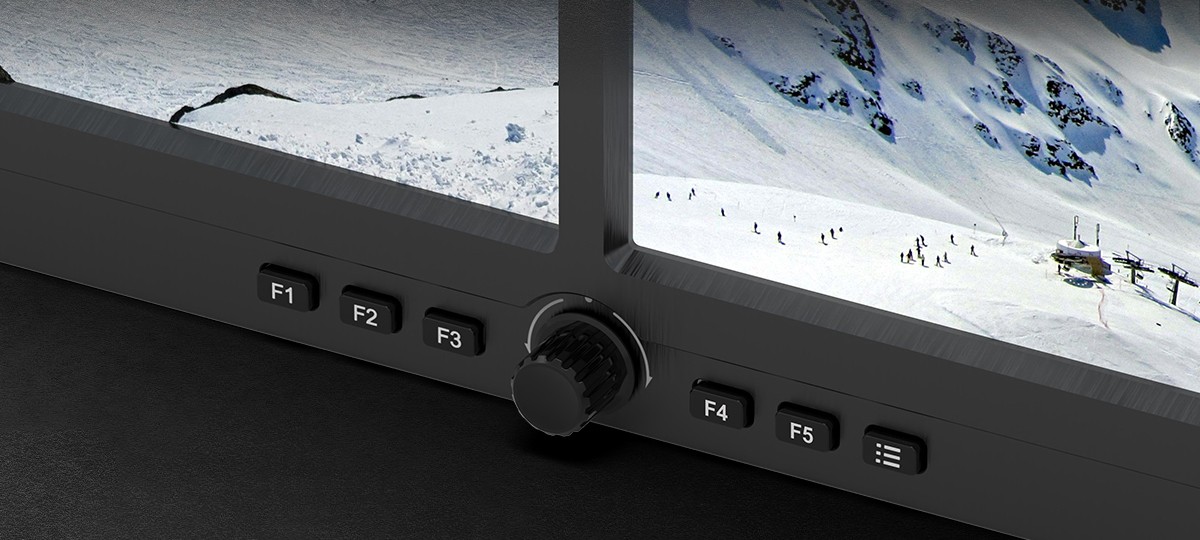

User-Friendly Operation
Features ergonomic button layouts and shortcut keys for seamless operation. The multifunctional knob allows precise adjustment of brightness, contrast, volume, and system menu settings.
*Taking KRM-1002U as an example in the diagram

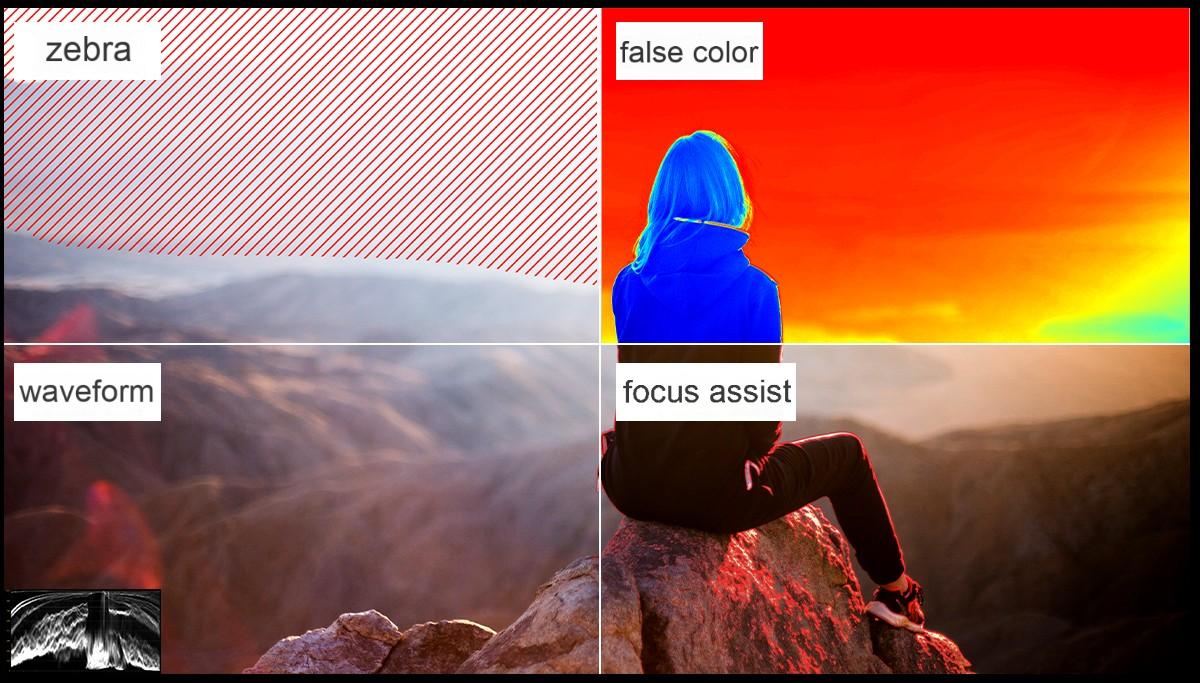

Advanced Image Analysis functions
Equipped with professional tools such as HDR percentage analysis, waveform, false color, focus assist, and zebra, the system delivers accurate and comprehensive image information for real-time adjustments.

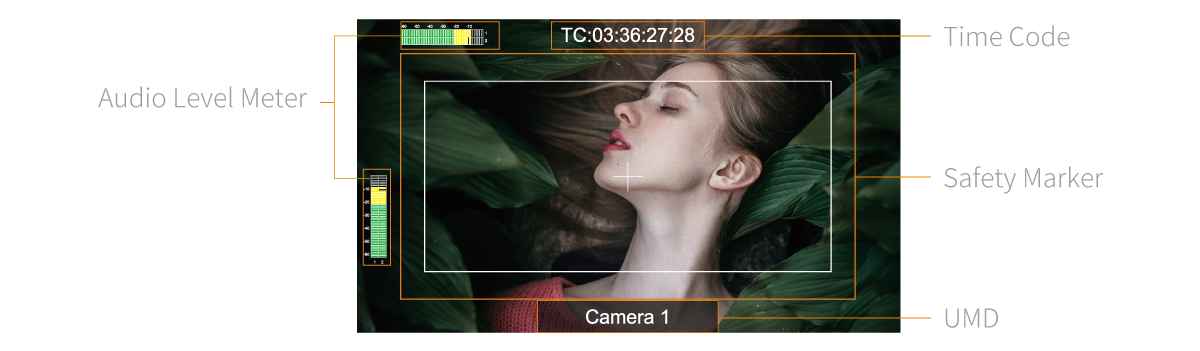

Comprehensive Marker Tools
Provides a range of Marker aids, including aspect ratio, marker, and safety marker. The BOX Control function can flexibly set the height and width of the marker frame on the monitor, and can be adjusted up, down, left and right. Users can flexibly adjust according to the frame ratio, which brings great convenience to program production.
Specifications
| Model No. | KRM-404U |
| Display Size | 4 x 4.1" |
| Resolution | 1280×720 |
| Aspect Ratio | 16:9 |
| Viewing Angle | 170°(H) / 170°(V) |
| Pixel Pitch | 0.0237×0.0711(mm) |
| Back Light | LED |
| Color Depth | 16.7M |
| Brightness | 450cd/m2 |
| Contrast Ratio | 1000:1 |
