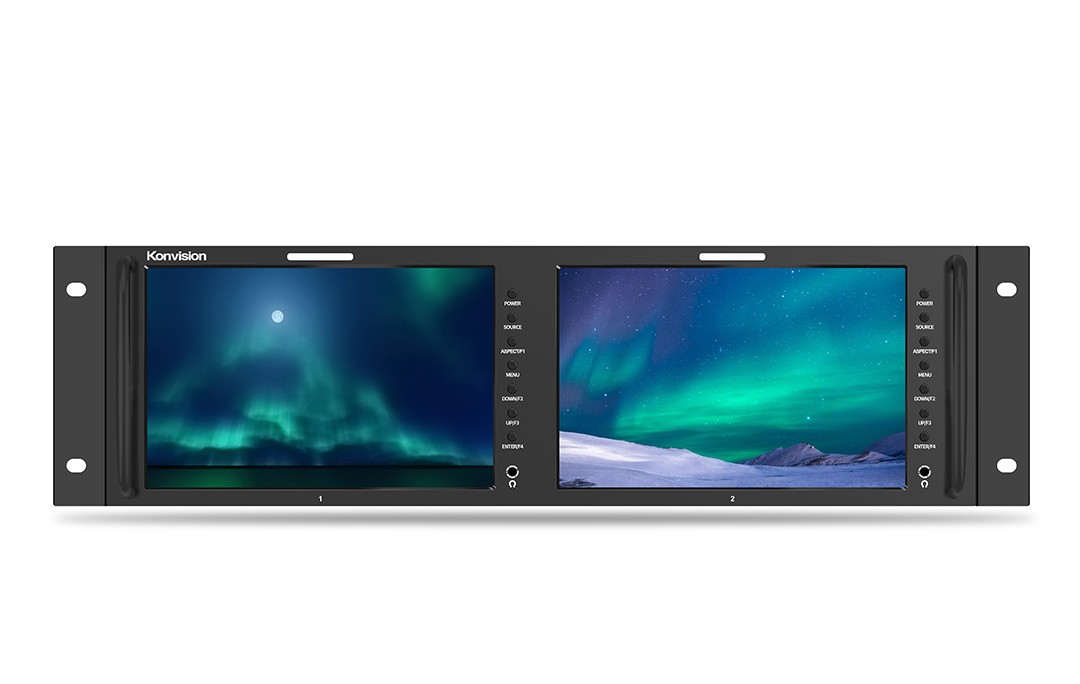

KRM-802A, 2x8”3RU dual rack-mount monitor, IPS LCD panels with full HD 1920x1200 resolution, wide viewing angle, high brightness and high contrast ratio. It supports waveform, vector scope, audio meter and more features.
Highlights
- 1920 x 1200 FHD resolution, IPS LCD panel
- 12Bit video processing
- 3D LUT color calibrated
- 1x3G/HD-SDI and out for each screen
- Composite Video input
- Waveform, Vector scope
- Markers Time Code
- Scan. Blue Only/Mono
- Audio Mete, UMD
- Built-in DC in and AC in
- Ethernet
- Tally
Product Descriptions
3D LUT Color Calibration
Compatible with ColourSpace and Calman calibration software, Konvision monitors apply K10-A probe(professional level) to achieve a precise color. Monitor's also workable with universal colorimeters including CA210, CA310, CS200, CR100, CR250, X-Rite i1 Display.
Waveform(Alarm),Vectors
SDI supports Waveform, Vectorscope, Histogram and manage to be displayed on screen at the same time.When luminance reaches or exceeds the preset value, the over exposure areas will be red marked(Waveform Alarm).
Various Markers
CC(Closed Caption), Markers, UMD, Audio Meter, Time Code.
Specifications
| Model No. | KRM-802A |
| Display Size | 2 x 8" |
| Resolution | 1920×1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | 160°(H) / 160°(V) |
| Pixel Pitch | 0.07875×0.07875(mm) |
| Back Light | LED |
| Color Depth | 16.7M |
| Brightness | 290cd/m2 |
| Contrast Ratio | 900:1 |
