Precisely Full-Array Local Dimming

The panel features 2304 independently controlled backlight areas, integrated with local dimming control solutions, and algorithms precisely regulate each zone to adjust display brightness according to screen content changes, providing richer details and presenting high-quality HDR images.

• With a contrast ratio of 1,000,000:1

  The monitor delivers clear distinction between bright and dark areas, it precisely aids medical personnel in identifying subtle changes and abnormalities in the image, which is beneficial for confirming the location of lesions.

• Appropriateness and stability of display brightness

  The monitor continuously providing doctors with bright, clear images required for precise diagnosis, avoiding the omission of lesions due to overly dark screens or image distortion caused by over-exposed screens.

4K UHD Display

It is equipped with a 32-inch 4K resolution 10bit LCD panel, offering four times the pixel density of FHD. Delivers finer details and clearer visuals, ideal for endoscopy, microsurgery, and other medical scenarios.

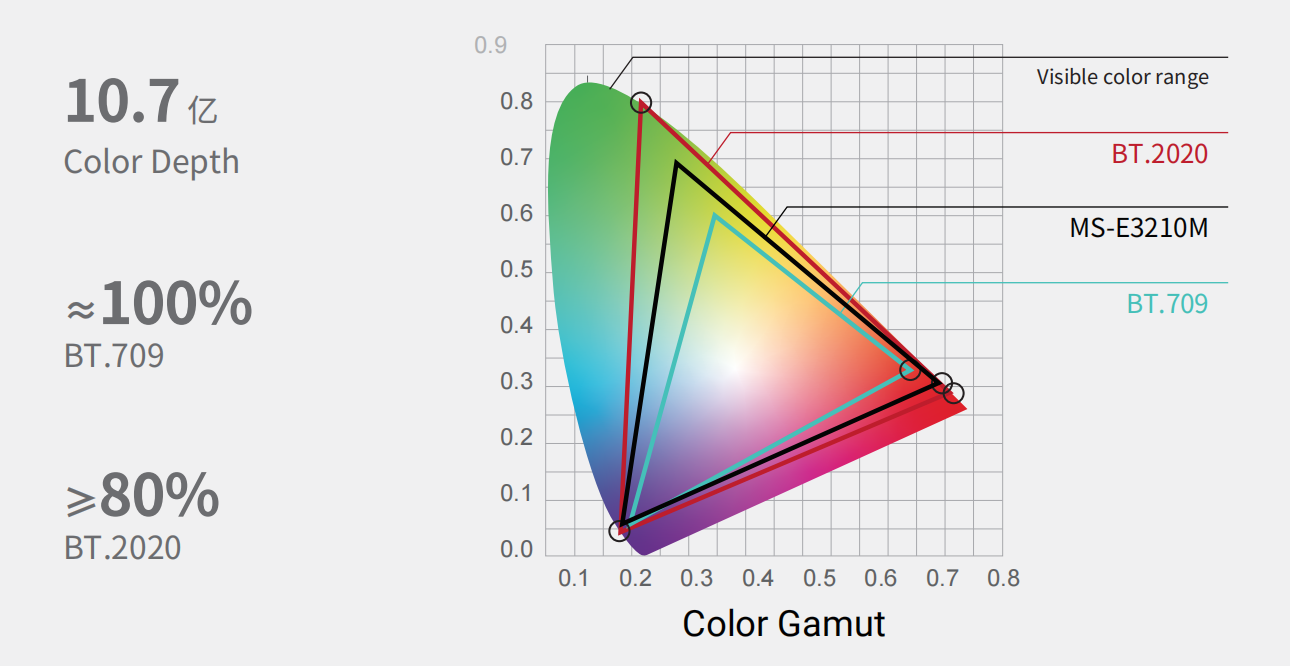

BT.2020 Wide Color Gamut

Complies with the ITU-R recommended BT.2020 color gamut standard, it is covering more than 3/4 of visible colors, with a color depth of 1.07 billion, providing a broader range of red and green, and more truly presenting the subtle color differences of various structures under endoscopy.

Intelligent Image Plus Mode

Konvision's Image Plus technology offers three enhancement modes—contour, color, and lift—to improve clarity and visibility, ensuring a more comfortable viewing experience.

                Intelligent Image Plus Mode ON                                                 Intelligent Image Plus Mode OFF

Simultaneous Quad-View Display

It supports input from multiple signal sources, allowing four images to be displayed simultaneously. It also enables real-time monitoring of patient vital signs or referencing additional imagery during endoscopic procedures.

Image Rotation & Mirroring

Supports 180° image rotation and left-right mirroring, enabling medical staff to adjust views for optimal visibility and comfort.

Multiple Connectivity Options, Long-Distance Transmission

It offers BNC (12G-SDI, 3G-SDI), HDMI2.0, DVI interfaces, compatible with 4K and 1080P signal input and output, supporting composite signals, meeting various connection needs.

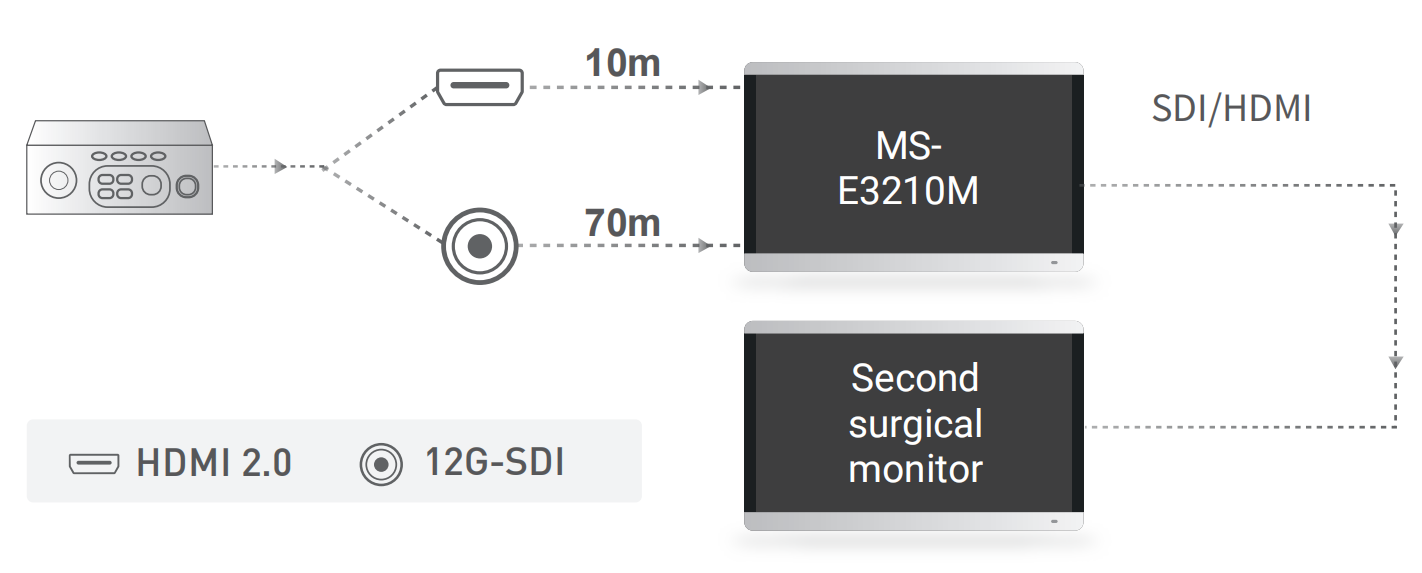

Real-time image sharing

It is configured with HDMI 2.0, 12G-SDI, and SDI SFP output interfaces for seamless duplication and sharing of imagery across monitors, achieving real-time transmission and sharing of information across spaces.

Stable Input & Output

It is equipped with dual medical-grade power options (AC and DC)，and offers a DC output port to power peripheral devices, reducing external power connections and simplifying equipment layout.

Effortless Cable Management

Downward-facing and recessed interface design with a cable box for organized wiring which can ensure a clean, safe, and hygienic surgical environment.

Anti-Reflective for Clear Viewing

Features anti-reflective glass with excellent scratch resistance, minimizing glare and reflections in bright operating room lights, preventing interference with screen images and effectively alleviating eye fatigue.

Anti-Contamination and Easy-to-Clean Design

The monitor's front features a full flat design with touchable buttons, effectively avoid contamination, and is easy to clean and disinfect. IP55 protection level effectively deals with solid particle intrusion and liquid corrosion.
